MCMC

By ChengMingbo

2017-11-30

1 / 42

I am a note, will be only shown when under presentation mode

Criminal ciphertex

2 / 42

斯坦福统计学教授Persi Diaconis是一位传奇式的人物。Diaconis14岁就成了一名魔术师,为了看懂数学家Feller的概率论著作，24岁时进入大学读书。他向《科学美国人》投稿介绍他的洗牌方法，在《科学美国人》上常年开设数学游戏专栏的著名数学科普作家马丁•加德纳给他写了推荐信去哈佛大学，当时哈佛的统计学家Mosteller 正在研究魔术，于是Diaconis成了Mosteller的学生。（对他这段传奇经历有兴趣的读者可以看一看统计学史话《女士品茶》）。下面要讲的这个故事，是Diaconis 在他的文章The Markov Chain Monte Carlo Revolution中给出的破译犯人密码的例子。一天，一位研究犯罪心理学的心理医生来到斯坦福拜访Diaconis。他带来了一个囚犯所写的密码信息。他希望Diaconis帮助他把这个密码中的信息找出来。这个密码里的每个符号应该对应着某个字母，但是如何把这些字母准确地找出来呢？Diaconis和他的学生Marc采用了一种叫做MCMC（马尔科夫链蒙特卡洛）的方法解决了这个问题。这个MCMC方法就是这一节我们所要讨论的内容。

OutlineMonte Carlo Approximation
Markov Chains
MCMC
Applications
3 / 42

How to solve π4 / 42

无穷级数

How to solve $\pi$

$\frac{\pi}{4}=1-\frac{1}{3}+\frac{1}{5}-\frac{1}{7}+\frac{1}{9}+\cdots$

5 / 42

How to solve $\pi$

$\frac{\pi}{4}=1-\frac{1}{3}+\frac{1}{5}-\frac{1}{7}+\frac{1}{9}+\cdots$

N = 100000;
sig = 1;
total = 0;
for i=1:N
    total += 1*sig/(2*i-1);
    sig = -sig;
    if i== 100 || i==1000 || i==10000 || i==100000
        fprintf('N=%d, pi=%.4f\n', i, total*4)
    end
end

6 / 42

How to solve $\pi$

$\frac{\pi}{4}=1-\frac{1}{3}+\frac{1}{5}-\frac{1}{7}+\frac{1}{9}+\cdots$

N = 100000;
sig = 1;
total = 0;
for i=1:N
    total += 1*sig/(2*i-1);
    sig = -sig;
    if i== 100 || i==1000 || i==10000 || i==100000
        fprintf('N=%d, pi=%.4f\n', i, total*4)
    end
end

N=100, pi=3.1316
N=1000, pi=3.1406
N=10000, pi=3.1415
N=100000, pi=3.1416

7 / 42

How to solve $\pi$

8 / 42

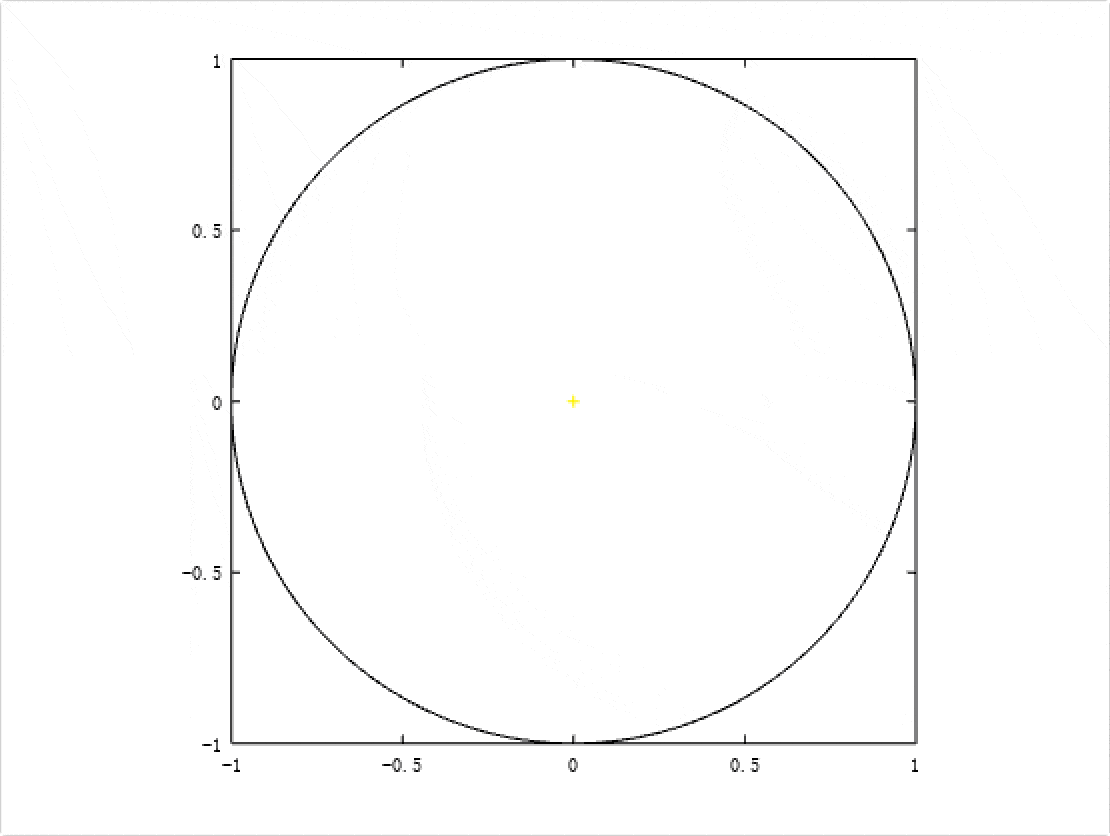

How to solve $\pi$

rejection method

9 / 42

How to solve $\pi$

N = 100000;
RN = rand(N, 2)*2-1;
inner = 0;
outer = 0;
for i=1:N
    if RN(i, 1)^2 + RN(i, 2)^2 <1
        inner +=1;
    else
        outer +=1;
    end
    if i== 100 || i==1000 || i==10000 || i==100000
        fprintf('N=%d, pi=%.4f\n', i, inner*4/i)
    end
end

N=100, pi=3.1200
N=1000, pi=3.0920
N=10000, pi=3.1436
N=100000, pi=3.1498

10 / 42

Monte Carlo Approximation11 / 42

Monte Carlo Integration

12 / 42

Monte Carlo Integration

13 / 42

Monte Carlo Integration

14 / 42

Monte Carlo Integration

15 / 42

Monte Carlo Integration

$\langle F^N\rangle = (b-a) \dfrac{1}{N } \sum_{i=0}^{N-1} f(X_i)$
$Pr(\lim_{ N \to \infty} \langle F^N \rangle = F ) = 1$

Monte Carlo Integration

$\begin{array}{l} E[\langle F^N \rangle] & = & E \left[ (b-a) \dfrac{1}{N } \sum_{i=0}^{N-1} f(x_i)\right],\\ & = & (b-a)\dfrac{1}{N } E[f(x)],\\ & = &(b-a)\dfrac{1}{N} \sum_{i=0}^{N-1} \int_a^b f(x)pdf(x)\:dx\\ & = & \dfrac{1}{N} \sum_{i=0}^{N-1} \int_a^b f(x)\:dx,\\ &=& \int_a^b f(x)\:dx,\\ &=&F\\ \end{array}$

Mathematical Expectation16 / 42

Monte Carlo Integration

Resovle $I = \int_0^1 xe^x {\rm d}x$

17 / 42

Monte Carlo Integration

$\begin{aligned} I &= uv - \int v du\\ &= xe^x - \int e^x dx\\ &= \left. xe^x - e^x \right|_0^1\\ &= \left. e^x(x-1)\right|_0^1\\ &= 0 - (-1) = 1 \end{aligned}$

18 / 42

Monte Carlo Integration

rand('seed',12345);
N1 = 100;
x = rand(N1,1);
Ihat1 = sum(x.*exp(x))/N1
N2 = 5000;
x = rand(N2,1);
Ihat2 = sum(x.*exp(x))/N2

Ihat1 =  0.95668
Ihat2 =  1.0063

19 / 42

Monte Carlo Integration

$\mathbb E[x] = \int_{p(x)} p(x) f(x) dx$ $where \quad f(x)=xe^x,\quad p(x)\in Unif(0,1)$

$\begin{aligned} I &= \mathbb E_{p(x)} f(x)\\ &\approx \frac{1}{N}\sum_{i=1}^N x_i e^{x_i} \end{aligned}$

20 / 42

Monte Carlo Integration

$\begin{aligned} &\begin{array}{|cc|}\hline g(x) \geq 0, x \in (a,b)\qquad\int_a^b g(x) = C < \infty\\ \hline\end{array}\\ &Let\quad p(x) = \frac{g(x)}{C}\\ &I = C \int_a^b h(x) p(x)dx = C \mathbb E_{p(x)}[h(x)] \end{aligned}$

21 / 42

Monte Carlo Integration

$\begin{array}{ll} \hline 1 & Identify \, h(x)\\ 2 & Identify\, g(x),\, determine\, p(x)\, and\, C \\ 3 & Draw\, N\, independence\, samples\\ 4 & Estimate\, I = C \mathbb E[h(x)] \approx \frac{C}{N} \sum_i^N h(x_i)\\ \hline \end{array}$

22 / 42

Markov Chains23 / 42

Markov Chains

$x^{(0)} \rightarrow x^{(1)} \rightarrow x^{(2)} \dots \rightarrow x^{(t)} \rightarrow \dots$

$\begin{array}{ll} \hline 1 & state\,space:\, \color{blue}{x}\\ 2 & transition\,operator:\, \color{blue}{p(x^{(t+1)} | x^{(t)})}\\ 3 & initial\,condition\,distribution:\, \color{blue}{\pi^{(0)} }\\ \hline \end{array}$

24 / 42

Markov Chains

Weather of Berkeley, CA:

$\begin{array}{|c|c|c|c|} \hline today->next week & sunny & foggy & rainy\\ \hline sunny & 0.8 & 0.15 & 0.05\\ \hline foggy & 0.4 & 0.5 & 0.1\\ \hline rainy & 0.1 & 0.3 & 0.6\\ \hline \end{array}$

weather next month, next year ?

25 / 42

Markov Chains

1. state space: {sunny, foggy, rainy}
2. transition operator: $P = \begin{bmatrix} 0.8 & 0.15 & 0.05\\ 0.4 & 0.5 & 0.1\\ 0.1& 0.3 & 0.6 \end{bmatrix}$
3. initial condition distribution: {sunny, foggy, rainy} = {0, 0, 1}

26 / 42

Markov Chains

P = [.8 .15 .05;  % SUNNY
.4 .5  .1;   % FOGGY
.1 .3  .6];  % RAINY
nWeeks = 52
% INITIAL STATE IS RAINY
X(1,:) = [0 0 1];
% RUN MARKOV CHAIN
for iB = 2:nWeeks
  X(iB,:) = X(iB-1,:)*P; % TRANSITION
end
% PREDICTIONS
fprintf('\np(weather) in 1 week -->'), disp(X(2,:));
fprintf('\np(weather) in 2 weeks -->'), disp(X(3,:));
fprintf('\np(weather) in 6 months -->'), disp(X(25,:));
fprintf('\np(weather) in 1 year -->'), disp(X(52,:));

p(weather) in 1 week -->   0.10000   0.30000   0.60000
p(weather) in 2 weeks -->   0.26000   0.34500   0.39500
p(weather) in 6 months -->   0.59649   0.26316   0.14035
p(weather) in 1 year -->   0.59649   0.26316   0.14035

27 / 42

Markov Chains

28 / 42

How about continuous state space ?29 / 42

Markov Chain Monte Carlo(MCMC)30 / 42

The Metropolis Sampler

Markov chain

1. state space {depends on target distribution, e.g. [ $-\infty, \infty$ ]}
2. proposal distribution: $q(x|x^{(t-1)})$
3. initial state: $x^{(0)}=\pi^{(0)}$

Monte Carlo

1. sampling from $q(x|x^{(t-1)})$
2. accept or reject the sample following some rules

31 / 42

The Metropolis Sampler

Draw sample from $p(x)=(1+x^2)^{-1}$

1. $\quad\pi^{(0)} \sim \mathcal{N}(0,1)$

2. $\quad q(x|x^{(t-1)}) \sim \mathcal{N}(x^{(t-1)},1)$

32 / 42

The Metropolis Sampler

randn('seed',12345);
p = inline('(1 + x.^2).^-1','x')
nSamples = 5000; sigma = 1;
minn = -20; maxx = 20;
xx = 3*minn:.1:3*maxx;
x = zeros(1 ,nSamples);  x(1) = randn; t = 1;
while t < nSamples
    t = t+1;
    xStar = normrnd(x(t-1) ,sigma);
    alpha = min([1, p(xStar)/p(x(t-1))]);
    u = rand;
    if u < alpha
        x(t) = xStar;
        str = 'Accepted';
    else
        x(t) = x(t-1);
        str = 'Rejected';
    end
end
hist(x, 500);

33 / 42

The Metropolis Sampler

34 / 42

The Metropolis Sampler

$\begin{array}{|l|} \hline \text{1. set } t = 0\\ \text{2. generate an initial state }x^{(0)}\text{ from a prior distribution }\pi^{(0)}\text{ over initial states}\\ \text{3. repeat until }t = M\\ \qquad\text{set }t = t+1\\ \qquad\text{generate a proposal state }x^*\text{ from }q(x | x^{(t-1)})\\ \qquad\text{calculate the acceptance probability }\alpha = \min \left(1, \frac{p(x^*)}{p(x^{(t-1)})}\right)\\ \qquad\text{draw a random number u from }\text{Unif}(0,1)\\ \qquad\qquad\text{if }u \leq \alpha\text{, accept the proposal and set }x^{(t)} = x^*\\ \qquad\qquad\text{else set }x^{(t)} = x^{(t-1)}\\ \hline \end{array}$

35 / 42

MCMC familyMetropolis Sampler
Metropolis-Hastings Sampler
Hybrid Monte Carlo
Gibbs Sampling
36 / 42

Applications37 / 42

Applications

LDA

Gibbs Sampling

38 / 42

LDA

$\begin{aligned} p(z_i = k|\overrightarrow{\mathbf{z}}_{\neg i}, \overrightarrow{\mathbf{w}}) & \propto p(z_i = k, w_i = t |\overrightarrow{\mathbf{z}}_{\neg i}, \overrightarrow{\mathbf{w}}_{\neg i}) \\ &= \int p(z_i = k, w_i = t, \overrightarrow{\theta}_m,\overrightarrow{\varphi}_k | \overrightarrow{\mathbf{z}}_{\neg i}, \overrightarrow{\mathbf{w}}_{\neg i}) d \overrightarrow{\theta}_m d \overrightarrow{\varphi}_k \\ &= \int p(z_i = k, \overrightarrow{\theta}_m|\overrightarrow{\mathbf{z}}_{\neg i}, \overrightarrow{\mathbf{w}}_{\neg i}) \cdot p(w_i = t, \overrightarrow{\varphi}_k | \overrightarrow{\mathbf{z}}_{\neg i}, \overrightarrow{\mathbf{w}}_{\neg i}) d \overrightarrow{\theta}_m d \overrightarrow{\varphi}_k \\ &= \int p(z_i = k |\overrightarrow{\theta}_m) p(\overrightarrow{\theta}_m|\overrightarrow{\mathbf{z}}_{\neg i}, \overrightarrow{\mathbf{w}}_{\neg i}) \cdot p(w_i = t |\overrightarrow{\varphi}_k) p(\overrightarrow{\varphi}_k|\overrightarrow{\mathbf{z}}_{\neg i}, \overrightarrow{\mathbf{w}}_{\neg i}) d \overrightarrow{\theta}_m d \overrightarrow{\varphi}_k \\ &= \int p(z_i = k |\overrightarrow{\theta}_m) Dir(\overrightarrow{\theta}_m| \overrightarrow{n}_{m,\neg i} + \overrightarrow{\alpha}) d \overrightarrow{\theta}_m \\ & \hspace{0.2cm} \cdot \int p(w_i = t |\overrightarrow{\varphi}_k) Dir( \overrightarrow{\varphi}_k| \overrightarrow{n}_{k,\neg i} + \overrightarrow{\beta}) d \overrightarrow{\varphi}_k \\ &= \int \theta_{mk} Dir(\overrightarrow{\theta}_m| \overrightarrow{n}_{m,\neg i} + \overrightarrow{\alpha}) d \overrightarrow{\theta}_m \cdot \int \varphi_{kt} Dir( \overrightarrow{\varphi}_k| \overrightarrow{n}_{k,\neg i} + \overrightarrow{\beta}) d \overrightarrow{\varphi}_k \\ &= \color{red}{E(\theta_{mk}) \cdot E(\varphi_{kt})} \\ \end{aligned}$

39 / 42

SummaryMonte Carlo Approximation
Markov Chains
MCMC
Applications
40 / 42

Reference
https://en.wikipedia.org/wiki/Monte_Carlo_integration
http://blog.csdn.net/baimafujinji/article/details/53869358
https://www.scratchapixel.com/lessons/mathematics-physics-for-computer-graphics/monte-carlo-methods-in-practice
https://theclevermachine.wordpress.com/2012/11/19/a-gentle-introduction-to-markov-chain-monte-carlo-mcmc/
https://site.douban.com/182577/widget/notes/10567181/note/292072927/
http://www.52nlp.cn/lda-math-lda-%E6%96%87%E6%9C%AC%E5%BB%BA%E6%A8%A1

41 / 42

Thanks!Q&A42 / 42
